Vibrcor Technology
The proprietary VIBRCOR high-grade TPU is strategically placed in the deep undercut pocket to create a speed-inducing and feel-enhancing internal technology that creates a distinct feel of the clubhead and that dampens sound and shock at impact.
Wide Sole / Deep Undercut Design
The wide sole of the E525 offers superior bounce and increased launch for cleaner, high-flying shots. The wide sole design deflects turf interaction for more consistent shot making. The 360° undercut cavity creates more face flexing and faster ball speed across the entire face.
Advanced Toe Weighting
Advanced toe weighting is strategically increased and made more visible in the new E525 Iron design. The added toe weighting maximizes stability on impact and provides better distance on off-center hits. This design elongates the sweet spot and creates a pure feel off the face of the irons.
Power Lofted
The lower and deeper CG allows the E525 Irons to be power-lofted to create an extreme distance iron. Power-lofting in this forgiving iron design promotes both maximized distance and optimized height without sacrificing the peak apex trajectory.
COMPARE HOT LAUNCH 525 IRONS
-
Hot Launch E525 Irons
Game Improvement Iron
Forgiveness: HIGH
Workability: MEDIUM
Hand/Loft: #4 - PW, AW (RH/LH)
4-Iron: 19°
7-Iron: 27.5°
PW: 42°
-

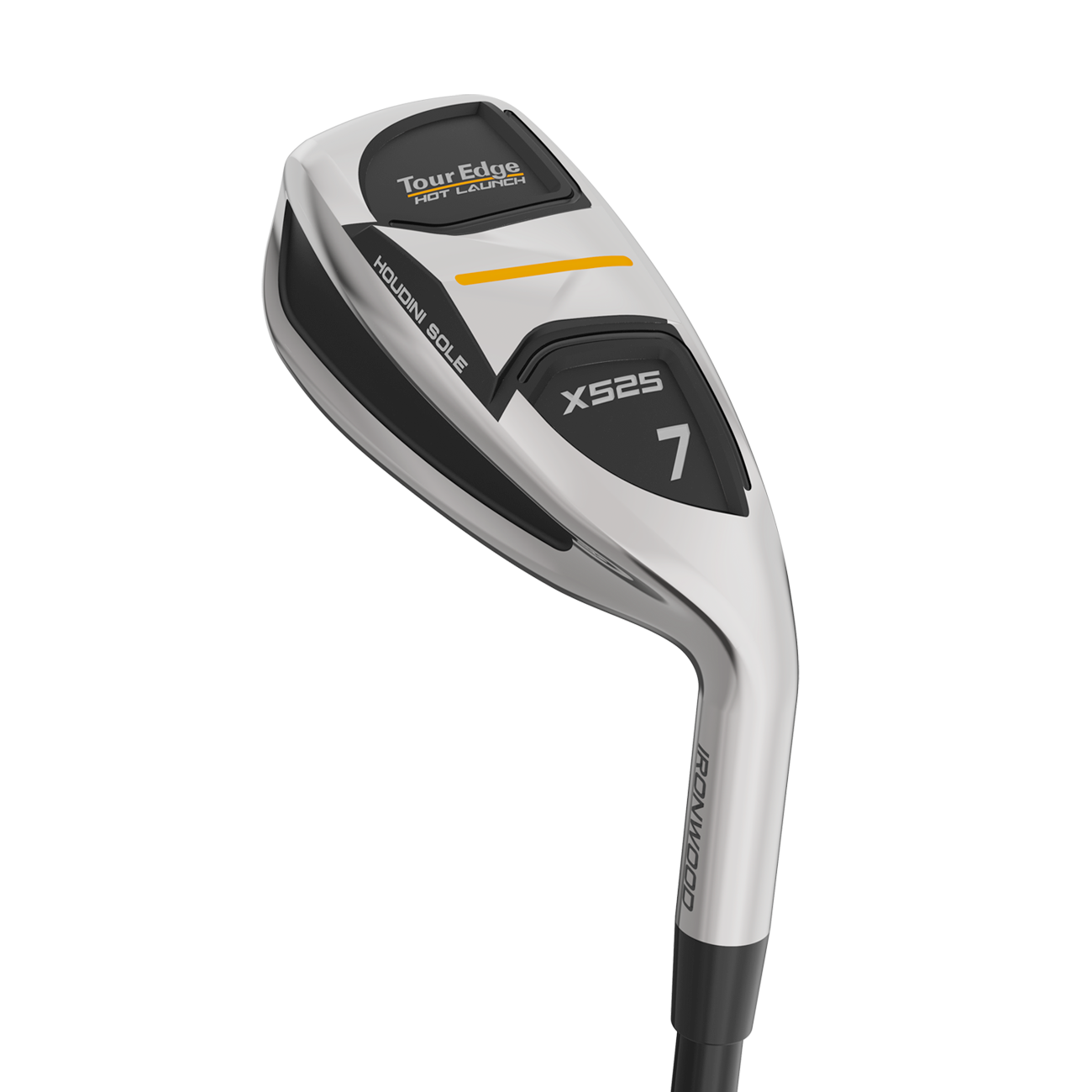

Hot Launch X525 Ironwoods
Super Game Improvement Iron
Forgiveness: EXTREME
Workability: MEDIUM - LOW
Hand/Loft: #4 - PW, AW (RH/LH)
4-Iron: 20°
7-Iron: 29°
PW: 43°
SPECIFICATIONS
| IRON | LOFT | LIE ANGLE | OFFSET | LENGTH |
|---|---|---|---|---|
| 4* | 19° | 61° | 6mm | 37.75" |
| 5* | 21.5° | 61.5° | 6mm | 37.25" |
| 6* | 24° | 62° | 5.5mm | 36.75" |
| 7* | 27.5° | 62.5° | 5mm | 36.25" |
| 8* | 32° | 63° | 4.5mm | 35.75" |
| 9* | 37° | 63.5° | 4mm | 35.25" |
| PW* | 42° | 64° | 4mm | 34.75" |
| AW* | 46° | 64° | 3.5mm | 34.50" |
*Available in right hand & left hand.
SHAFT SPECS
UST Mamiya Helium White
Helium White iron shafts are featuring new Nanocore Technology for increased clubhead speed. Innovative materials and design profile stabilize shaft flexural and torsional characteristics in harmony with the lightweight design to optimize shaft performance and consistency with precise feel.
| MODEL | FLEX | WEIGHT | LAUNCH | SPIN | TORQUE | TIP DIAMETER |
|---|---|---|---|---|---|---|
| UST Mamiya Helium 45L | L | 50g | HIGH | MID | 4.0° | 0.370 |
GRIP
Lamkin Z5 Black Undersize
Undersize: 48g (58 Round)
